Cavity wall insulation is one of the most common ways to reduce heat loss in suitable homes. If your property has uninsulated cavity walls, filling that gap can help make the home warmer, more comfortable and easier to heat.
But if you have never had it done before, the process can feel a little unclear. What does the installer actually do? Are holes drilled into the wall? How long does it take? And how do you know whether your home is suitable?

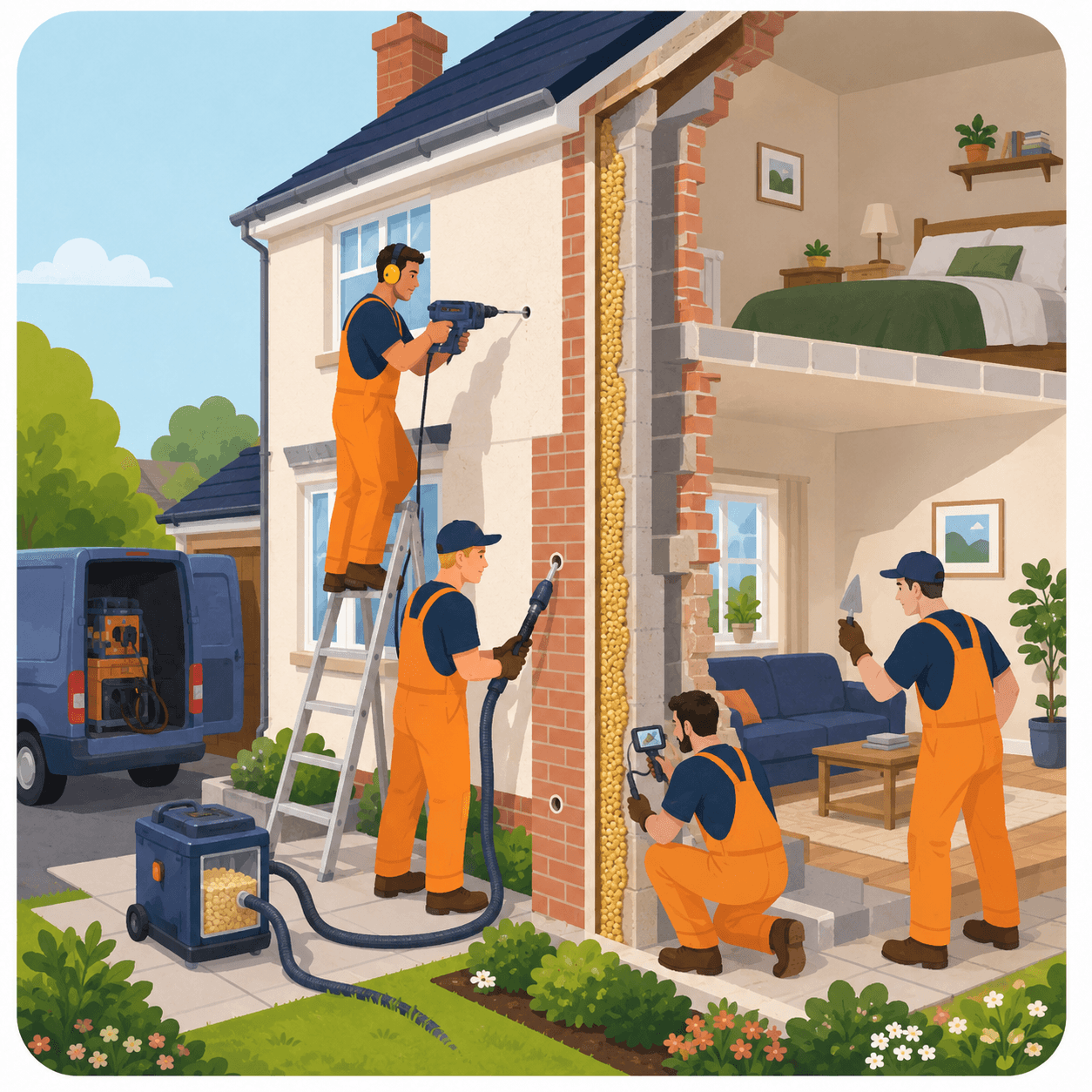

This guide explains how cavity wall insulation is installed step by step, in simple terms.
What Is Cavity Wall Insulation?
A cavity wall is made up of two layers, usually an outer brick wall and an inner block or brick wall, with a gap between them. This gap is called the cavity.
Cavity wall insulation fills that space with insulating material, helping to reduce heat loss through the external walls. Instead of warmth escaping quickly through the wall structure, the insulation helps slow down that movement of heat.
Common cavity wall insulation materials include:
Mineral wool
Polystyrene beads
Foam-based insulation products
The right material depends on the property, cavity width, exposure, wall condition and the installer’s system.
Which Homes Are Suitable for Cavity Wall Insulation?
Not every home has cavity walls, and not every cavity wall is suitable for insulation.
As a general guide, many homes built after the 1920s have cavity walls, while many older homes have solid walls. However, age alone is not enough to confirm suitability. Some older properties have cavity walls, and some homes have been altered or extended in different ways over time.
A home may be suitable if:
- It has cavity walls
- The cavity is empty or only partly filled
- The external walls are in good condition
- The cavity is wide enough for the insulation system
- There are no significant damp problems
- The brickwork, pointing or render is sound
- The property is not too exposed to wind-driven rain
- The cavity is clear enough to be filled properly
A proper survey is important because poor suitability or poor installation can lead to problems.
Step 1: The Initial Home Survey
The first step is usually a home survey or assessment.
This is where an installer checks whether the property is likely to be suitable for cavity wall insulation. They will look at the construction, condition and layout of the walls before recommending any work.
The survey may include checking:
- The age and type of property
- Wall construction
- Cavity width
- Existing insulation
- Signs of damp or water penetration
- Condition of brickwork, render and pointing
- External walls and elevations
- Exposure to weather
- Access around the property
- Any extensions or mixed wall types
The survey is one of the most important parts of the process. It helps make sure the wall can be insulated safely and effectively.
Step 2: Checking the Wall Type
Before installation, the installer needs to confirm that the property actually has cavity walls.
This may be done by looking at brick patterns, wall thickness and construction details. In many cases, the installer may also drill a small inspection hole and use a borescope camera to look inside the cavity.
This helps confirm:
Whether there is a cavity
How wide the cavity is
Whether it is already insulated
Whether there is debris inside
Whether the cavity is dry
Whether wall ties or obstructions are present
This check is important because cavity wall insulation should not be installed into a wall that is not suitable.
Step 3: Looking for Damp or Defects
Cavity wall insulation should not be used to cover up existing damp or building defects.
Before work begins, the installer should check for issues such as:
- Cracked or damaged brickwork
- Poor pointing
- Damaged render
- Blocked gutters or downpipes
- Leaking roofs or flashing
- Damp patches inside the home
- Signs of penetrating damp
- Blocked air bricks
- Existing cavity debris
If water is already getting into the wall, insulation could make the problem worse. Any defects should usually be repaired before insulation is installed.
This is especially important in older homes, exposed locations and properties that have already had damp or condensation problems.
Step 4: Choosing the Insulation Material
Once the property is confirmed as suitable, the installer will choose the appropriate insulation material.
Different systems work in slightly different ways, but the aim is the same: to fill the cavity evenly without leaving gaps.
Common options include:
Mineral Wool
Mineral wool is blown into the cavity as a loose fibre material. It is designed to fill the space and reduce heat movement through the wall.
Polystyrene Beads
Small insulation beads are blown into the cavity, often with a bonding agent to help them stay in place. These beads can flow around obstacles and fill the cavity.
Foam Insulation
Foam insulation is injected into the cavity and expands to fill the space. It must be installed carefully using a suitable system.
The installer should explain what material is being used and why it is suitable for the property.
Step 5: Preparing the Property
Before installation starts, the installer will prepare the working area.
This may include:
- Moving items away from external walls
- Checking access around the house
- Protecting paths, plants or external features where needed
- Setting up ladders, towers or access equipment
- Planning the drilling pattern
- Checking vents, flues and openings
- Confirming where insulation should and should not be installed
Most cavity wall insulation is installed from the outside, so disruption inside the home is usually limited. However, installers may still need access indoors for checks, especially if there are damp concerns, flues, vents or unusual wall layouts.
Step 6: Drilling Small Holes in the Wall
The installer then drills a series of small holes in the external wall.
These holes are usually drilled into the mortar joints rather than directly through the face of the bricks where possible. The holes are spaced in a pattern that allows the insulation to be injected evenly across the wall.
The exact drilling pattern depends on:
- The insulation material
- The wall size
- The cavity width
- The house layout
- Obstructions around windows, doors and corners
- The installer’s approved system
Although the holes are necessary for installation, they are filled and made good afterwards.
Step 7: Injecting the Insulation
Once the holes are drilled, the insulation is injected into the cavity using specialist equipment.
The installer works methodically around the property, filling one section of the wall at a time. The goal is to make sure the cavity is filled evenly from bottom to top and around key areas such as window openings, corners and gable ends.
During this stage, the installer may check:
- The flow of insulation material
- Whether the cavity is filling properly
- Whether any blockages are present
- Whether vents, flues or openings are clear
- Whether the material is reaching all areas
This is where experience matters. Poor filling can leave cold spots, while overfilling or filling unsuitable areas can create problems.
Step 8: Treating Vents, Flues and Openings Carefully
Not every gap in a wall should be filled.
Some homes have vents, flues, air bricks or ventilation openings that must remain clear. These are important for safety, ventilation and moisture control.
The installer should identify and protect these areas before insulation is injected.
This can include:
- Checking combustion air vents
- Making sure flues are not affected
- Keeping air bricks clear where needed
- Maintaining sub-floor ventilation
- Protecting extractor vents
- Avoiding areas that should not be insulated
Blocking essential ventilation can create safety and damp risks, so this step should not be overlooked.
Step 9: Filling and Matching the Drill Holes
After the cavity has been filled, the installer fills the drill holes.
The holes are normally repaired with mortar or a suitable matching material. The aim is to make the repair as neat and discreet as possible, although the finish can depend on the wall type, brick colour and mortar.
On a standard brick wall, the holes are often difficult to notice once the repair has dried. On rendered or painted walls, additional making good may be needed to blend the finish.
Step 10: Final Checks
Before leaving, the installer should carry out final checks.
These may include:
- Checking that all holes have been filled
- Checking vents and air bricks remain clear
- Clearing installation debris
- Confirming the system has been filled as intended
- Reviewing any areas that could not be insulated
- Explaining what work has been completed
- Providing paperwork or certification where applicable
The homeowner should also be told what to look out for after installation and who to contact if there are any concerns.
How Long Does Cavity Wall Insulation Take?
For many standard homes, cavity wall insulation can often be completed in a few hours, though the exact time depends on the size and layout of the property.
The work may take longer if:
- The home is large
- Access is difficult
- There are multiple extensions
- The property has unusual wall construction
- Extra checks are needed
- Scaffolding or specialist access is required
- Repairs are needed before installation
A good installer should explain the likely timescale before the work begins.
Will There Be Much Disruption?
Cavity wall insulation is usually less disruptive than many other energy efficiency upgrades because most of the work is carried out externally.
You may experience:
- Some drilling noise
- Installers working around the outside of the house
- Temporary access restrictions around walls
- Minor dust or debris outside
- Short periods where doors, gates or driveways need access
Inside the home, disruption is usually limited, but the installer may still need to inspect internal walls, check vents or confirm details before and after the work.
What Happens After Installation?
After the insulation is installed, you may notice that rooms hold heat better and feel more comfortable. The improvement may be most noticeable in colder weather or in rooms with large external wall areas.
However, the effect can vary depending on the property. Cavity wall insulation works best as part of a wider approach that also considers:
- Loft insulation
- Heating controls
- Boiler performance
- Draught-proofing
- Ventilation
- Window and door condition
- Floor insulation
If a home still has major heat loss through the roof, floors or draughty areas, wall insulation alone may not solve every comfort issue.
Can Cavity Wall Insulation Cause Damp?
Properly installed cavity wall insulation in a suitable property should not cause damp. Problems are more likely when insulation is installed in a wall that was not suitable, when existing defects are ignored, or when ventilation is blocked.
Risk factors can include:
- Poor external wall condition
- Cracked render or pointing
- High exposure to wind-driven rain
- Narrow or debris-filled cavities
- Existing damp issues
- Blocked air bricks or vents
- Incorrect installation
- Unsuitable insulation material
This is why the survey stage matters. The installer should assess the property before recommending cavity wall insulation.
How Do You Know If It Has Been Installed Properly?
A good installation should leave the property tidy, with drill holes filled neatly and key ventilation points left clear.
You should expect:
- Clear explanation of the work completed
- Confirmation of the insulation material used
- Installer details
- Any guarantee or warranty information
- Building Regulations compliance paperwork where applicable
- Advice on what to do if you have concerns
If the installer is registered under a relevant competent person scheme, they may be able to self-certify the work and arrange the appropriate compliance notification.
Keep any paperwork safe, as it may be useful if you sell or remortgage the property in the future.
Questions to Ask Before Installation
Before agreeing to cavity wall insulation, it is worth asking:
- Have you confirmed that my home has cavity walls?
- How wide is the cavity?
- Is the cavity clear and dry?
- Are there any signs of damp or wall defects?
- What insulation material will be used?
- Why is this material suitable for my home?
- Will vents, flues and air bricks be checked?
- How will the drill holes be made good?
- How long will the work take?
- What guarantee or warranty is included?
- Will I receive certification or paperwork?
- What should I do if I notice a problem later?
A reliable installer should be happy to answer these questions clearly.
Is Cavity Wall Insulation Right for Every Home?
No. Cavity wall insulation can be a very useful upgrade, but only when the property is suitable.
It may not be recommended if:
- The home has solid walls
- The cavity is too narrow
- The cavity is filled with rubble or debris
- There are existing damp problems
- External walls are in poor condition
- The property is very exposed
- There are ventilation or flue concerns
- The wall has already been insulated badly in the past
In these cases, other measures may be more suitable, such as solid wall insulation, loft insulation, draught-proofing, heating improvements or ventilation upgrades.
Final Thoughts
Cavity wall insulation is a practical way to improve the energy efficiency of suitable homes. The process is usually straightforward: the property is surveyed, the cavity is checked, small holes are drilled, insulation is injected, and the holes are made good afterwards.
The most important step is the survey. A good installation starts with making sure the wall is suitable, dry, clear and in good condition. When installed properly, cavity wall insulation can help reduce heat loss and make a home feel warmer and more comfortable.
At Warmr, we help homeowners understand practical energy-efficient upgrades, including insulation, heating improvements, solar panels and wider home energy measures. The right recommendation starts with the property itself, so any improvement is chosen carefully and installed properly.
